Tropinox 7 Layer Stainless Steel Water Tanks

Get a Price/Quote

Tropinox 7 Layer Stainless Steel Water Tanks Specification

Thickness
1.5 Millimeter (mm)

Color
Silver

Material
Stainless Steel

Metals Type
Steel

Shape
Other

Tropinox 7 Layer Stainless Steel Water Tanks Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash on Delivery (COD), Cash in Advance (CID), Cash Advance (CA)

Supply Ability
100 Units Per Week

Delivery Time
15-20 Days

Main Domestic Market
Delhi

About Tropinox 7 Layer Stainless Steel Water Tanks

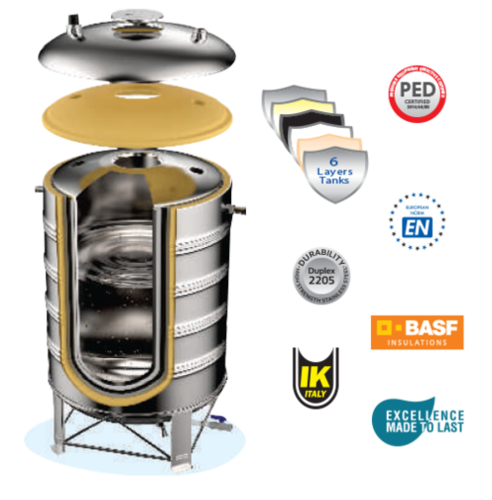

Tropinox 6 Layer Stainless Steel Water Tanks is a heavy duty multi layered metal container which is designed by using top quality engineering materials which is provided with a galvanized non-reactive coating which makes it capable to store various types of liquids other than water such as chemicals, fertilizers and many more. It has a high compression strength 0.12 Newton per square millimetres with a core density of 40 kilograms per cubic metres.

Technical specification

Capacity	Litters	1000	1500	2000	2500	3000	4000	5000
Inner Diameter	MM	970	1230	1420	1600	1600	1700	1960
Outer Diameter	MM	1070	1360	1550	1760	1760	1960	2200
Height	MM /INCH	1750 /70	1750/70	1800/72	1800/72	22600/90	2550/102	2300/42
Lid Diamater	MM/INCH	420/16.5	420/16.5	530/16.5	530/21	530/21	530/21	1050/42
Inlet Connection	MM/INCH	25/1	25/1	25/1	25/1	25/1	25/1	25/1
Overflow Connection	MM/INCH	25/1	25/1	25/1	25/1	25/1	25/1	25/1
Outlet Connection	MM/INCH	40/1.5	40/1.5	40/1.5	40/1.5	40/1.5	40/1.5	40/1.5
Draon Connection	MM/INCH	40/1.5	40/1.5	40/1.5	40/1.5	40/1.5	40/1.5	40/1.5

Property	Standard	Value
Overall core density	Din en ISO 845	40 kg /m3
Compressive Stress	Din 53421	0.12n/mm2
Compression	Din 53421	10%
Weter absorption	Din 53428	< 2%
Dimensional Stability At -30degree At +80degree	Din 53431	Max 0.1%
Thermal conductivity	Din 52612	0.019W/mk
