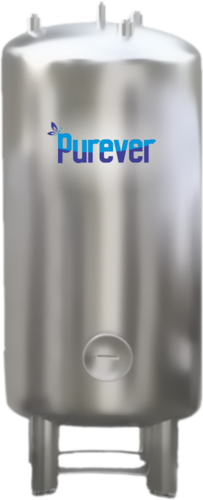

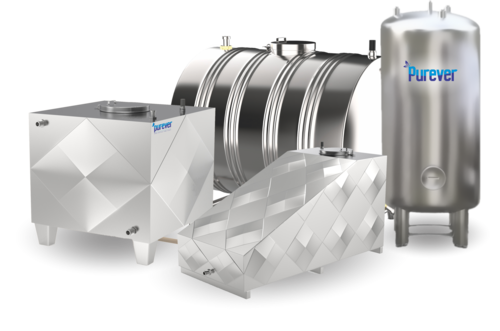

Insulated Stainless Steel Water Storage Tanks
Product Details:
- Grade SS316L
- Thickness 3.0-4.0 Millimeter (mm)
- Material Stainless Steel
- Shape Other
- Click to View more
Insulated Stainless Steel Water Storage Tanks Price And Quantity
- 1000 Unit
- 50000.00 - 200000.00 INR/Unit
Insulated Stainless Steel Water Storage Tanks Product Specifications
- SS316L
- 3.0-4.0 Millimeter (mm)
- Stainless Steel
- Other
Insulated Stainless Steel Water Storage Tanks Trade Information
- Cash on Delivery (COD) Cash in Advance (CID) Cash Advance (CA)
- 100 Unit Per Week
- 15-20 Days
- Delhi
Product Description
Insulated Stainless Steel Water Storage TanksTechnical specification
Capacity |
Litters |
1000 |
1500 |
2000 |
2500 |
3000 |
4000 |
5000 |
Inner Diameter |
MM |
970 |
1230 |
1420 |
1600 |
1600 |
1700 |
1960 |
Outer Diameter |
MM |
1070 |
1360 |
1550 |
1760 |
1760 |
1960 |
2200 |
Height |
MM /INCH |
1750 /70 |
1750/70 |
1800/72 |
1800/72 |
22600/90 |
2550/102 |
2300/42 |
Lid Diamater |
MM/INCH |
420/16.5 |
420/16.5 |
530/16.5 |
530/21 |
530/21 |
530/21 |
1050/42 |
Inlet Connection |
MM/INCH |
25/1 |
25/1 |
25/1 |
25/1 |
25/1 |
25/1 |
25/1 |
Overflow Connection |
MM/INCH |
25/1 |
25/1 |
25/1 |
25/1 |
25/1 |
25/1 |
25/1 |
Outlet Connection |
MM/INCH |
40/1.5 |
40/1.5 |
40/1.5 |
40/1.5 |
40/1.5 |
40/1.5 |
40/1.5 |
Draon Connection |
MM/INCH |
40/1.5 |
40/1.5 |
40/1.5 |
40/1.5 |
40/1.5 |
40/1.5 |
40/1.5 |
Property |
Standard |
Value |
Overall core density |
Din en ISO 845 |
40 kg /m3 |
Compressive Stress |
Din 53421 |
0.12n/mm2 |
Compression |
Din 53421 |
10% |
Weter absorption |
Din 53428 |
< 2% |
Dimensional Stability At -30deg. At +80deg. |
Din 53431 |
Max 0.1% |
Thermal conductivity |
Din 52612 |
0.019W/mk |
