2000 Litre Pharminox 6 Layer Stainless Steel Water Tanks

About 2000 Litre Pharminox 6 Layer Stainless Steel Water Tanks

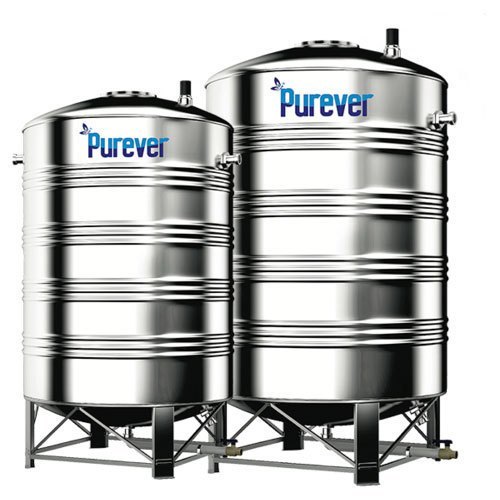

2000 Litre Pharminox 6 Layer Stainless Steel Water Tanks 2000 Litre Pharminox 6 Layer Stainless Steel Water Tanks is a light weight and easy to install large cylindrical steel tank. It is designed and developed by using advanced production techniques which offers excellent strength and high dimensional accuracy. This tank has a high discharge volume of 2000 litres to store large amount of water. Its unique multi-layered designed makes it capable to withstand longitudinal and hoop stresses for longer service life. Technical specification Capacity Litters 1000 1500 2000 2500 3000 4000 5000 Inner Diameter MM 970 1230 1420 1600 1600 1700 1960 Outer Diameter MM 1070 1360 1550 1760 1760 1960 2200 Height MM /INCH 1750 /70 1750/70 1800/72 1800/72 22600/90 2550/102 2300/42 Lid Diamater MM/INCH 420/16.5 420/16.5 530/16.5 530/21 530/21 530/21 1050/42 Inlet Connection MM/INCH 25/1 25/1 25/1 25/1 25/1 25/1 25/1 Overflow Connection MM/INCH 25/1 25/1 25/1 25/1 25/1 25/1 25/1 Outlet Connection MM/INCH 40/1.5 40/1.5 40/1.5 40/1.5 40/1.5 40/1.5 40/1.5 Draon Connection MM/INCH 40/1.5 40/1.5 40/1.5 40/1.5 40/1.5 40/1.5 40/1.5 Property Standard Value Overall core density Din en ISO 845 40 kg /m3 Compressive Stress Din 53421 0.12n/mm2 Compression Din 53421 10% Weter absorption Din 53428 < 2% Dimensional Stability At -30degree At +80degree Din 53431 Max 0.1% Thermal conductivity Din 52612 0.019W/mk
